Unity+C#，讯飞 文本转语音、语音转文本

  本文介绍在Unity3D中，使用C#编写讯飞文本转语音、语音转文本的功能。这两个功能相似，学会一个另一个就简单了。建议新建一个Unity3D项目来进行测试，否则极大可能会出现各种问题。

准备工作

首先在讯飞开放平台上获取以下三个内容：APPID、APISecret、APIKey。

Unity3D WebSocket接口

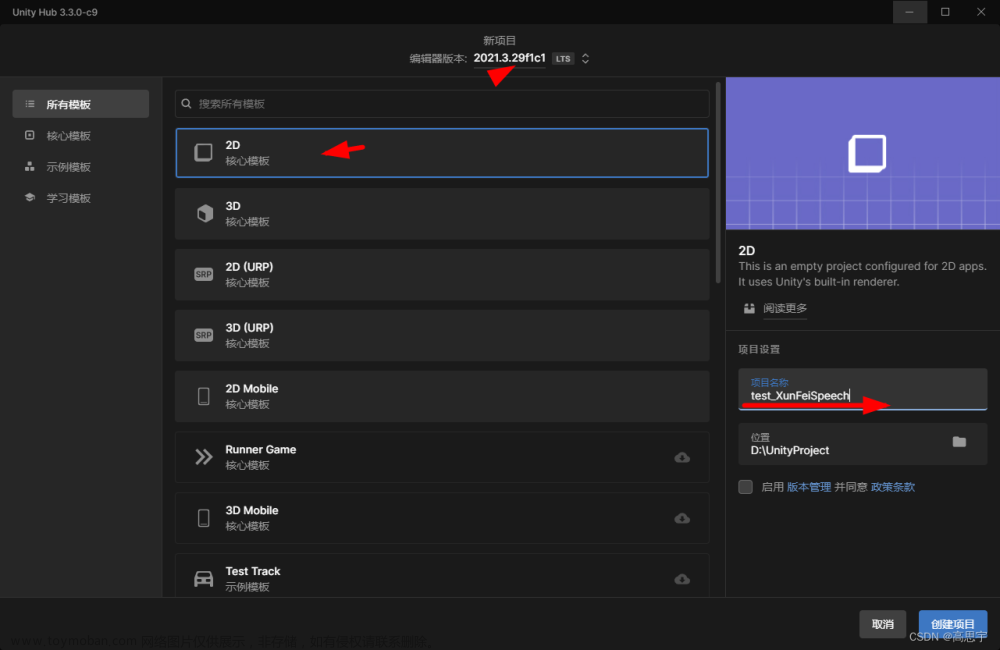

新建一个Unity3D项目：

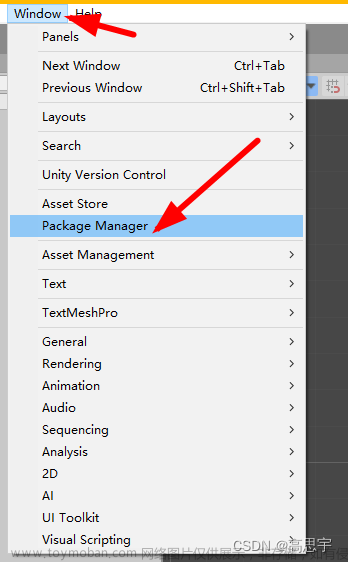

在Unity顶部菜单栏上的Window-Package Manager，打开

选择Packages:Unity Registry，选择Newtonsoft.Json包，点击安装(Install)。等待安装完成…

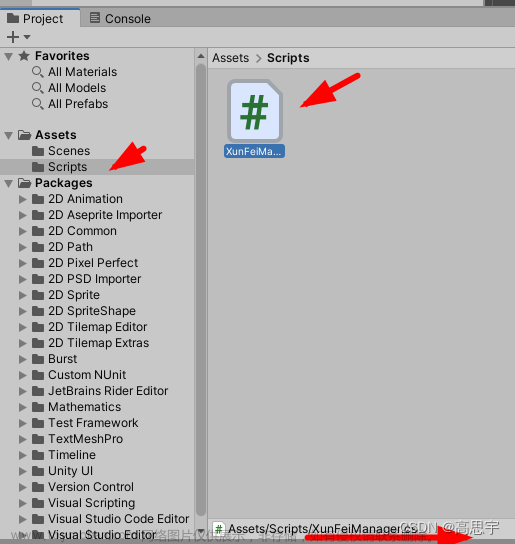

新建一个代码类：XunFeiManager（XunFeiManager.cs）

打开代码，改成如下内容：
这里有三个参数需要改成你在讯飞控制台中的参数：APPID、APISecret、APIKey。

using System;
using System.Collections.Generic;
using System.Net.WebSockets;
using System.Security.Cryptography;
using System.Text;
using System.Threading.Tasks;
using System.Threading;
using UnityEngine;
using Newtonsoft.Json.Linq;
using System.Linq;

public class XunFeiManager : MonoBehaviour
{
    /// <summary>单例</summary>
    public static XunFeiManager Instance;

    /// <summary>固定不动</summary>
    private const string STTURL = "wss://iat-api.xfyun.cn/v2/iat";
    /// <summary>固定不动</summary>
    private const string TTSURL = "wss://tts-api.xfyun.cn/v2/tts";
    /// <summary>改成你自己的APPID!!!!!!</summary>
    private const string APPID = "********";
    /// <summary>改成你自己的APISecret!!!!!!</summary>
    private const string APISecret = "********************************";
    /// <summary>改成你自己的APIKey!!!!!!</summary>
    private const string APIKey = "********************************";


    /// <summary>WebSocket</summary>
    private ClientWebSocket webSocket;


    private void Awake()
    {
        //初始化单例
        Instance = this;
    }


    public async Task<string> SpeechToText(JObject request)
    {
        //获取请求数据
        byte[] bytes = Convert.FromBase64String(request["data"].ToString());
        //建立连接
        await Connect(STTURL);
        //发送消息
        await STTSendMessage(bytes);
        //接收消息
        string text = await STTReceiveMessage();
        //关闭接连
        await webSocket.CloseAsync(WebSocketCloseStatus.NormalClosure, string.Empty, CancellationToken.None);

        //构建返回Json数据
        JObject response = new JObject();
        response["text"] = text;
        //响应Post请求
        return response.ToString();
    }


    public async Task<string> TextToSpeech(JObject request)
    {
        //获取请求数据
        string text = request["text"].ToString();
        string voice = request["voice"].ToString();
        //建立连接
        await Connect(TTSURL);
        //发送消息
        await TTSSendMessage(text, voice);
        //接收消息
        string base64String = await TTSReceiveMessage();
        //关闭接连
        await webSocket.CloseAsync(WebSocketCloseStatus.NormalClosure, string.Empty, CancellationToken.None);

        //构建返回Json数据
        JObject response = new JObject();
        response["data"] = base64String;
        //响应Post请求
        return response.ToString();

    }


    /// <summary>
    /// 连接讯飞API
    /// </summary>
    /// <returns></returns>
    private async Task Connect(string url)
    {
        //新建ClientWebSocket
        webSocket = new ClientWebSocket();
        //使用WebSocket连接讯飞的服务
        await webSocket.ConnectAsync(new Uri(GetUrl(url)), CancellationToken.None);
        //await Console.Out.WriteLineAsync("讯飞WebSocket连接成功");
    }


    /// <summary>
    /// 讯飞语音转文本，发送消息
    /// </summary>
    private async Task STTSendMessage(byte[] bytes)
    {
        //状态值 0代表第1帧，1代表中间帧，2代表结尾帧
        int status;
        int remainLength = bytes.Length;
        //分段发送消息
        while (remainLength > 0)
        {
            byte[] currBytes;
            if (remainLength > 1280)
            {
                status = remainLength == bytes.Length ? 0 : 1;
                currBytes = new byte[1280];
                Array.Copy(bytes, bytes.Length - remainLength, currBytes, 0, 1280);
                remainLength -= 1280;
            }
            else
            {
                status = 2;
                currBytes = new byte[remainLength];
                Array.Copy(bytes, bytes.Length - remainLength, currBytes, 0, remainLength);
                remainLength = 0;
            }

            JObject jsonData = STTCreateJsonData(status, currBytes);
            byte[] messageBytes = Encoding.UTF8.GetBytes(jsonData.ToString());
            await webSocket.SendAsync(messageBytes, WebSocketMessageType.Text, true, CancellationToken.None);
            //等待30ms
            await Task.Delay(20);
            //Console.WriteLine("发送消息："+jsonData.ToString());
        }
        //Console.WriteLine("数据发送完成");
    }

    /// <summary>
    /// 讯飞语音转文本，生成需要发送的Json数据
    /// </summary>
    /// <param name="status"></param>
    /// <param name="bytes"></param>
    /// <returns></returns>
    private JObject STTCreateJsonData(int status, byte[] bytes)
    {
        JObject requestObj = new JObject();
        JObject commonJson = new JObject();
        commonJson["app_id"] = APPID;
        requestObj["common"] = commonJson;
        JObject bussinessJson = new JObject();
        bussinessJson["language"] = "zh_cn";
        bussinessJson["domain"] = "iat";
        bussinessJson["accent"] = "mandarin";
        bussinessJson["dwa"] = "wpgs";
        requestObj["business"] = bussinessJson;
        JObject dataJson = new JObject();
        dataJson["status"] = status;
        dataJson["format"] = "audio/L16;rate=16000";
        dataJson["encoding"] = "raw";
        dataJson["audio"] = Convert.ToBase64String(bytes);
        requestObj["data"] = dataJson;
        return requestObj;
    }

    /// <summary>
    /// 讯飞语音转文本，接收消息
    /// </summary>
    /// <returns></returns>
    private async Task<string> STTReceiveMessage()
    {
        //webSocket.
        //状态值
        int status = 0;
        string finalText = string.Empty;
        while (status != 2)
        {
            byte[] buffer = new byte[8 * 1024];
            WebSocketReceiveResult webSocketReceiveResult = await webSocket.ReceiveAsync(buffer, CancellationToken.None);

            string receivedMessage = Encoding.UTF8.GetString(buffer, 0, webSocketReceiveResult.Count);
            //await Console.Out.WriteLineAsync("receivedMessage：" + receivedMessage);
            finalText += STTParseMessage(receivedMessage, out status);
        }
        Debug.Log("讯飞语音转文本：" + finalText);
        return finalText;

    }
    /// <summary>
    /// 讯飞语音转文本，解析收到的Json消息
    /// </summary>
    /// <param name="message"></param>
    /// <param name="status"></param>
    /// <returns></returns>
    private string STTParseMessage(string message, out int status)
    {
        JObject jObject = JObject.Parse(message);

        int code = (int)jObject["code"];
        if (code != 0)//失败
        {
            string errMsg = jObject["message"].ToString();
            Debug.LogError("讯飞语音转文本，解析Json消息失败，错误信息：" + errMsg);
        }
        else//成功
        {
            string result = string.Empty;
            foreach (JObject i in jObject["data"]["result"]["ws"])
            {
                foreach (JObject w in i["cw"])
                {
                    result += w["w"].ToString();
                }
            }
            //状态值
            //识别结果是否结束标识：
            //0：识别的第一块结果
            //1：识别中间结果
            //2：识别最后一块结果
            status = (int)jObject["data"]["status"];
            return result;
        }
        status = -1;
        return string.Empty;
    }


    /// <summary>
    /// 讯飞文本转语音，发送消息
    /// </summary>
    private async Task TTSSendMessage(string text, string voice)
    {
        //构建请求需要的Json字符串
        JObject jsonData = TTSCreateJsonData(text, voice);
        byte[] messageBytes = Encoding.UTF8.GetBytes(jsonData.ToString());
        //发送消息
        await webSocket.SendAsync(messageBytes, WebSocketMessageType.Text, true, CancellationToken.None);
    }


    /// <summary>
    /// 讯飞文本转语音，生成需要发送的Json数据
    /// </summary>
    /// <param name="status"></param>
    /// <param name="bytes"></param>
    /// <returns></returns>
    private JObject TTSCreateJsonData(string text, string voice)
    {
        JObject requestObj = new JObject();
        JObject commonJson = new JObject();
        commonJson["app_id"] = APPID;
        requestObj["common"] = commonJson;
        JObject bussinessJson = new JObject();
        bussinessJson["aue"] = "raw";
        bussinessJson["vcn"] = voice;
        bussinessJson["speed"] = 50;
        bussinessJson["volume"] = 50;
        bussinessJson["pitch"] = 50;
        bussinessJson["tte"] = "UTF8";
        requestObj["business"] = bussinessJson;
        JObject dataJson = new JObject();
        dataJson["status"] = 2;
        dataJson["text"] = Convert.ToBase64String(Encoding.UTF8.GetBytes(text));
        requestObj["data"] = dataJson;
        return requestObj;
    }


    /// <summary>
    /// 讯飞文本转语音，接收消息
    /// </summary>
    /// <returns>语音合成后的base64字符串</returns>
    private async Task<string> TTSReceiveMessage()
    {
        //webSocket.
        //状态值
        int status = 0;
        List<byte> bytes = new List<byte>();
        while (status != 2)
        {
            bool receivedCompleted = false;
            string receivedMessage = string.Empty;
            while (!receivedCompleted)
            {
                byte[] buffer = new byte[8 * 1024];
                WebSocketReceiveResult webSocketReceiveResult = await webSocket.ReceiveAsync(buffer, CancellationToken.None);
                receivedMessage += Encoding.UTF8.GetString(buffer, 0, webSocketReceiveResult.Count);
                receivedCompleted = webSocketReceiveResult.Count != 8 * 1024;
            }
            //await Console.Out.WriteLineAsync("receivedMessage：" + receivedMessage);
            bytes.AddRange(Convert.FromBase64String(TTSParseMessage(receivedMessage, out status)).ToList());
            //finalAudioBase64String += TTSParseMessage(receivedMessage, out status).TrimEnd('=');
        }
        string finalAudioBase64String = Convert.ToBase64String(bytes.ToArray());
        //await Console.Out.WriteLineAsync("讯飞语音转文本：" + finalAudioBase64String);
        return finalAudioBase64String;


    }

    /// <summary>
    /// 讯飞文本转语音，解析收到的Json消息
    /// </summary>
    /// <param name="message"></param>
    /// <param name="status"></param>
    /// <returns></returns>
    private string TTSParseMessage(string message, out int status)
    {
        JObject jObject = JObject.Parse(message);
        if (jObject["message"].ToString() == "success")
        {
            if (jObject["data"] != null)
            {
                if (jObject["data"]["audio"] != null)
                {
                    if ((int)jObject["data"]["status"] == 2)
                    {
                        status = 2;
                    }
                    else
                    {
                        status = 1;
                    }
                    return jObject["data"]["audio"].ToString();

                }
            }
            Debug.LogError("ERROR:TTSParseMessage失败，data为空");
            status = 0;
            return string.Empty;
        }
        else
        {
            Debug.LogError("ERROR:TTSParseMessage失败，错误消息：" + jObject["message"].ToString());
            status = 0;
            return string.Empty;
        }

    }



    #region 生成URL
    private string GetUrl(string url)
    {
        Uri uri = new Uri(url);
        //官方文档要求时间必须是UTC+0或GMT时区，RFC1123格式(Thu, 01 Aug 2019 01:53:21 GMT)。
        string date = DateTime.Now.ToString("r");
        //组装生成鉴权
        string authorization = ComposeAuthUrl(uri, date);
        //生成最终鉴权
        string uriStr = $"{uri}?authorization={authorization}&date={date}&host={uri.Host}";
        //返回生成后的Url
        return uriStr;
    }
    /// <summary>
    /// 组装生成鉴权
    /// </summary>
    /// <param name="uri"></param>
    /// <param name="date"></param>
    /// <returns>最终编码后的鉴权</returns>
    private string ComposeAuthUrl(Uri uri, string date)
    {
        string signature; //最终编码后的签名
        string authorization_origin; //原始鉴权
                                     //原始签名
        string signature_origin = string.Format("host: " + uri.Host + "\ndate: " + date + "\nGET " + uri.AbsolutePath + " HTTP/1.1");
        //使用hmac-sha256算法加密后的signature
        string signature_sha = HmacSHA256(signature_origin, APISecret); //使用hmac - sha256算法结合apiSecret对signature_origin签名
        signature = signature_sha;
        string auth = "api_key=\"{0}\", algorithm=\"{1}\", headers=\"{2}\", signature=\"{3}\"";
        authorization_origin = string.Format(auth, APIKey, "hmac-sha256", "host date request-line", signature); //参数介绍：APIKey,加密算法名，headers是参与签名的参数(该参数名是固定的"host date request-line")，生成的签名
        return ToBase64String(authorization_origin);
    }

    /// <summary>
    /// 加密算法HmacSHA256
    /// </summary>
    /// <param name="secret"></param>
    /// <param name="signKey"></param>
    /// <returns></returns>
    private static string HmacSHA256(string secret, string signKey)
    {
        string signRet = string.Empty;
        using (HMACSHA256 mac = new HMACSHA256(Encoding.UTF8.GetBytes(signKey)))
        {
            byte[] hash = mac.ComputeHash(Encoding.UTF8.GetBytes(secret));
            signRet = Convert.ToBase64String(hash);
        }
        return signRet;
    }

    /// <summary>
    /// UTF字符串转成Base64字符串
    /// </summary>
    /// <param name="value"></param>
    /// <returns></returns>
    private static string ToBase64String(string value)
    {
        if (value == null || value == "")
        {
            return "";
        }
        byte[] bytes = Encoding.UTF8.GetBytes(value);
        return Convert.ToBase64String(bytes);
    }

    #endregion
}

这里有三个参数需要改成你在讯飞控制台中的参数：
APPID、APISecret、APIKey。

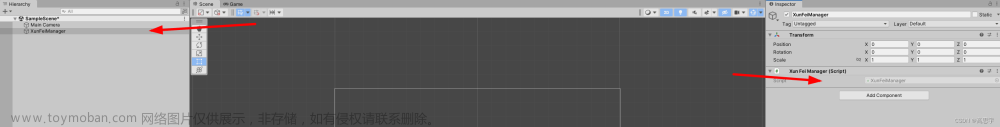

返回Unity编辑器，在场景中创建一个空物体，命名为XunFeiManager，并挂载上刚才的脚本（XunFeiManager.cs）。

文本转语音

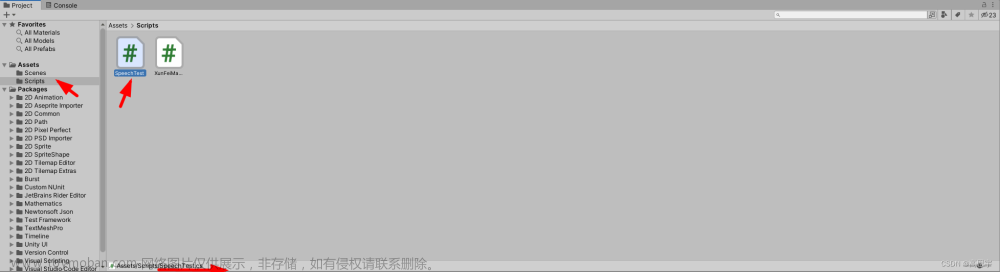

再新建一个脚本SpeechTest.cs，在场景中新建一个空物体SpeechTest，挂载上这个脚本（SpeechTest.cs）。

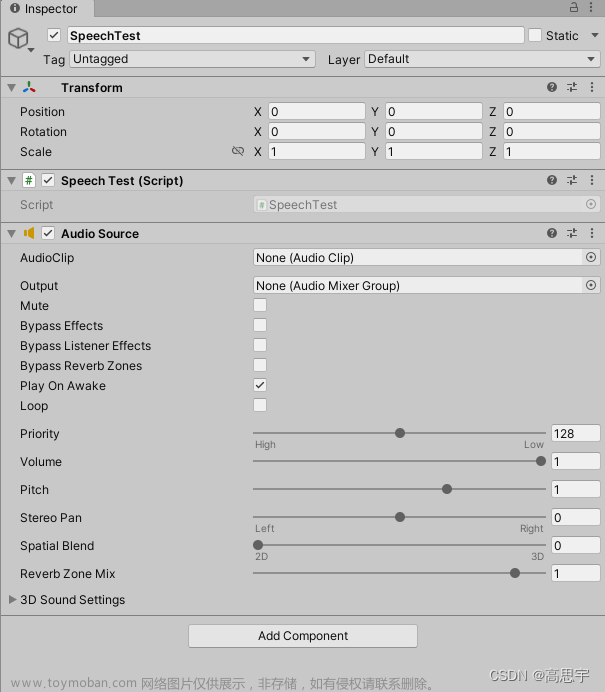

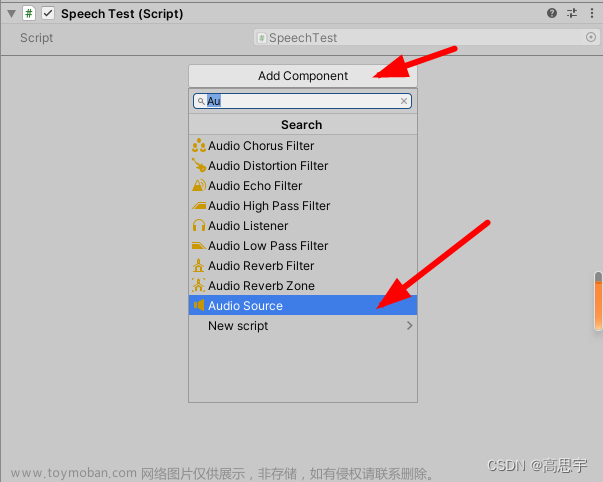

然后，再在这个物体（SpeechTest）上挂载一个Audio Source组件。


打开这个脚本（SpeechTest.cs），改成以下代码：

using Newtonsoft.Json.Linq;
using System;
using System.Collections;
using System.Collections.Generic;
using System.Text;
using System.Threading.Tasks;
using UnityEngine;
using UnityEngine.Networking;

[RequireComponent(typeof(AudioSource))]
public class SpeechTest : MonoBehaviour
{
    /// <summary>当前物体的AudioSource组件<summary>
    [HideInInspector]
    public AudioSource audioSource;

    /// <summary>用户录入的音频</summary>
    private AudioClip recordedAudioClip;


    private void Start()
    {
        //获取AudioSource组件
        audioSource = GetComponent<AudioSource>();


        //测试用[!重要代码]，此操作为异步完成，需要一段时间后才能执行=>{}里的代码。
        SendTextToSpeechMsg("你好啊，我是讯飞语音助手！", auidoClip =>
        {
            audioSource.clip = auidoClip;
            audioSource.Play();
        });
    }

    #region 语音转文本 测试用

    private bool recording = false;

    /// <summary>
    /// 当 录音按钮 按下时调用
    /// </summary>
    public void OnButtonClick()
    {
        if (recording == false)
        {
            recording = true;
            //开始录音[!重要代码]
            StartRecord();

        }
        else
        {
            recording = false;
            //结束录音[!重要代码]
            EndRecord((text, _) =>
            {
                Debug.Log($"讯飞语音转文本成功！文本为：{text}");
            });
        }
    }

    #endregion

    #region 讯飞文本转语音

    /// <summary>
    /// 向XunFei发送消息，并等待其返回
    /// </summary>
    /// <param name="text">文本</param>
    /// <param name="chatGLMCallback">回调函数</param>
    public void SendTextToSpeechMsg(string text, Action<AudioClip> callback)
    {
        //构建Json字符串
        JObject jObject = new JObject();
        jObject["text"] = text;
        //可以更改成你想要的声音，具体内容在讯飞控制台中查看
        jObject["voice"] = "xiaoyan";
        //发送消息
        StartCoroutine(SendTextToSpeechMsgCoroutine(jObject, callback));
    }

    /// <summary>
    /// 向XunFei发送消息的协程
    /// </summary>
    /// <param name="message"></param>
    /// <param name="callback">收到消息后的回调函数</param>
    /// <returns></returns>
    private IEnumerator SendTextToSpeechMsgCoroutine(JObject message, Action<AudioClip> callback)
    {
        //请求数据
        Task<string> resultJson = XunFeiManager.Instance.TextToSpeech(message);
        //等待返回消息
        yield return new WaitUntil(() => resultJson.IsCompleted);

        //成功接收到消息
        if (resultJson.IsCompletedSuccessfully == true)
        {
            //解析Json字符串
            JObject obj = JObject.Parse(resultJson.Result);
            //获取音频数据（base64字符串）
            string text = obj["data"].ToString();
            //解析音频数据
            float[] audioData = BytesToFloat(Convert.FromBase64String(text));

            if (audioData.Length == 0)//讯飞文本转语音失败
            {
                Debug.Log($"讯飞文本转语音失败，可能由于输入文本为空或不正确，导致语音长度为0，错误信息：{resultJson.Result}");
                //失败回调
                callback.Invoke(null);
            }
            //构建AudioClip
            AudioClip audioClip = AudioClip.Create("SynthesizedAudio", audioData.Length, 1, 16000, false);
            audioClip.SetData(audioData, 0);

            //Debug.Log("讯飞文本转语音成功");
            //回调
            callback.Invoke(audioClip);
        }
        else
        {
            Debug.Log($"讯飞文本转语音消息发送失败，错误信息：{resultJson.Result}");
            //失败回调
            callback.Invoke(null);
        }

    }



    /// <summary>
    /// byte[]数组转化为AudioClip可读取的float[]类型
    /// </summary>
    /// <param name="byteArray"></param>
    /// <returns></returns>
    private static float[] BytesToFloat(byte[] byteArray)
    {
        float[] sounddata = new float[byteArray.Length / 2];
        for (int i = 0; i < sounddata.Length; i++)
        {
            sounddata[i] = bytesToFloat(byteArray[i * 2], byteArray[i * 2 + 1]);
        }
        return sounddata;
    }
    private static float bytesToFloat(byte firstByte, byte secondByte)
    {
        // convert two bytes to one short (little endian)
        //小端和大端顺序要调整
        short s;
        if (BitConverter.IsLittleEndian)
            s = (short)((secondByte << 8) | firstByte);
        else
            s = (short)((firstByte << 8) | secondByte);
        // convert to range from -1 to (just below) 1
        return s / 32768.0F;
    }


    #endregion


    #region 讯飞语音转文本


    /// <summary>
    /// 开始录音
    /// </summary>
    public void StartRecord()
    {
        //开始录音频（最长40秒）
        recordedAudioClip = Microphone.Start(null, true, 40, 16000);
    }

    /// <summary>
    /// 结束录音
    /// </summary>
    /// <param name="speechToTextCallback">语音转文本成功后的回调函数</param>
    public void EndRecord(Action<string, AudioClip> speechToTextCallback)
    {
        //取消了录音
        if (speechToTextCallback == null) return;
        //录音结束
        Microphone.End(null);
        //去除掉没有声音的片段
        recordedAudioClip = TrimSilence(recordedAudioClip, 0.01f);
        //发送消息
        SendSpeechToTextMsg(recordedAudioClip, text =>
        {
            //回调
            speechToTextCallback.Invoke(text, recordedAudioClip);
        });
    }


    /// <summary>
    /// 向XunFei发送消息，并等待其返回
    /// </summary>
    /// <param name="strContent">音频数据</param>
    /// <param name="chatGLMCallback">回调函数</param>
    public void SendSpeechToTextMsg(AudioClip audioClip, Action<string> callback)
    {
        byte[] bytes = AudioClipToBytes(audioClip);
        //构建Json字符串
        JObject jObject = new JObject();
        jObject["data"] = Convert.ToBase64String(bytes);
        //发送消息
        StartCoroutine(SendSpeechToTextMsgCoroutine(jObject, callback));
    }

    /// <summary>
    /// 向XunFei发送消息的协程
    /// </summary>
    /// <param name="message"></param>
    /// <param name="callback">收到消息后的回调函数</param>
    /// <returns></returns>
    private IEnumerator SendSpeechToTextMsgCoroutine(JObject message, Action<string> callback)
    {
        //请求数据
        Task<string> resultJson = XunFeiManager.Instance.SpeechToText(message);
        //等待返回消息
        yield return new WaitUntil(() => resultJson.IsCompleted);

        //成功接收到消息
        if (resultJson.IsCompletedSuccessfully == true)
        {
            //解析Json字符串
            JObject obj = JObject.Parse(resultJson.Result);
            //获取相似度
            string text = obj["text"].ToString();
            //Debug.Log("讯飞语音转文本：" + text);
            //回调
            callback.Invoke(text);
        }
        else
        {
            Debug.Log("讯飞语音转文本消息发送失败");
            //失败回调
            callback.Invoke(string.Empty);
        }

    }


    /// <summary>
    /// 将AudioClip转换成byte[]数据
    /// </summary>
    /// <param name="audioClip">Unity中的音频数据</param>
    /// <returns>byte[]数据</returns>
    private static byte[] AudioClipToBytes(AudioClip audioClip)
    {
        float[] data = new float[audioClip.samples];
        audioClip.GetData(data, 0);
        int rescaleFactor = 32767; //to convert float to Int16
        byte[] outData = new byte[data.Length * 2];
        for (int i = 0; i < data.Length; i++)
        {
            short temshort = (short)(data[i] * rescaleFactor);
            byte[] temdata = BitConverter.GetBytes(temshort);
            outData[i * 2] = temdata[0];
            outData[i * 2 + 1] = temdata[1];
        }
        return outData;
    }

    /// <summary>
    /// 剔除沉默音域
    /// </summary>
    /// <param name="clip"></param>
    /// <param name="min"></param>
    /// <returns></returns>
    private static AudioClip TrimSilence(AudioClip clip, float min)
    {
        var samples = new float[clip.samples];
        clip.GetData(samples, 0);

        return TrimSilence(new List<float>(samples), min, clip.channels, clip.frequency);
    }

    private static AudioClip TrimSilence(List<float> samples, float min, int channels, int hz, bool _3D = false)
    {
        int origSamples = samples.Count;

        int i;

        for (i = 0; i < samples.Count; i++)
        {
            if (Mathf.Abs(samples[i]) > min)
            {
                break;
            }
        }

        i -= (int)(hz * .1f);
        i = Mathf.Max(i, 0);

        // Remove start silence
        samples.RemoveRange(0, i);

        for (i = samples.Count - 1; i > 0; i--)
        {
            if (Mathf.Abs(samples[i]) > min)
            {
                break;
            }
        }

        // Add some tail onto it
        i += (int)(hz * .1f);
        i = Mathf.Min(i, samples.Count - 1);
        samples.RemoveRange(i, samples.Count - i);


        if (samples.Count == 0)
        {
            Debug.Log("剔除后的AudioClip长度为0");
            return null;
        }

        var clip = AudioClip.Create("TempClip", samples.Count, channels, hz, _3D);
        clip.SetData(samples.ToArray(), 0);

        return clip;
    }

    #endregion
}

运行游戏，就可以听到语音了。
找到以下这段话，可以改成自己需要的文本。

SendTextToSpeechMsg("你好啊，我是讯飞语音助手！", auidoClip =>
{
    audioSource.clip = auidoClip;
    audioSource.Play();
});

语音转文本

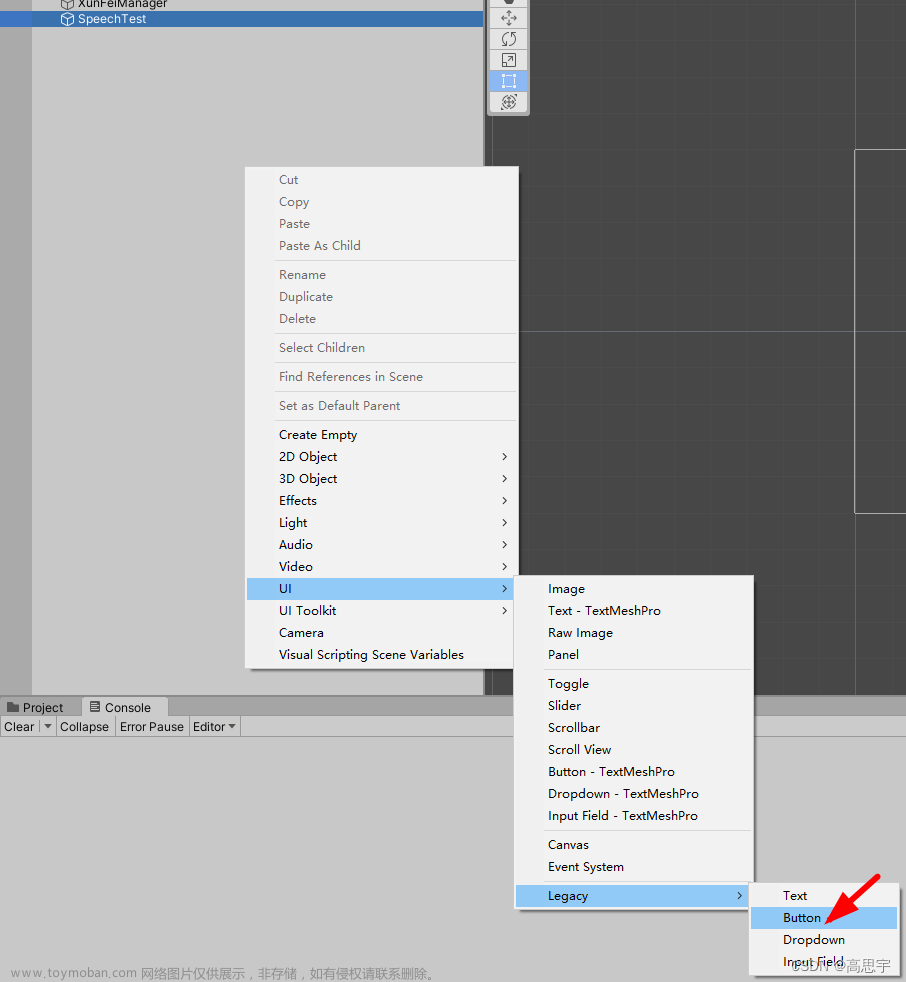

在Unity编辑器中，新建一个按钮。

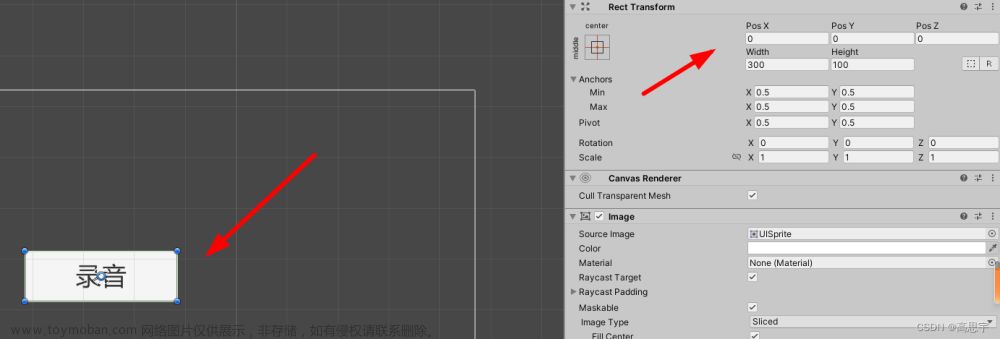

简单设置一下。

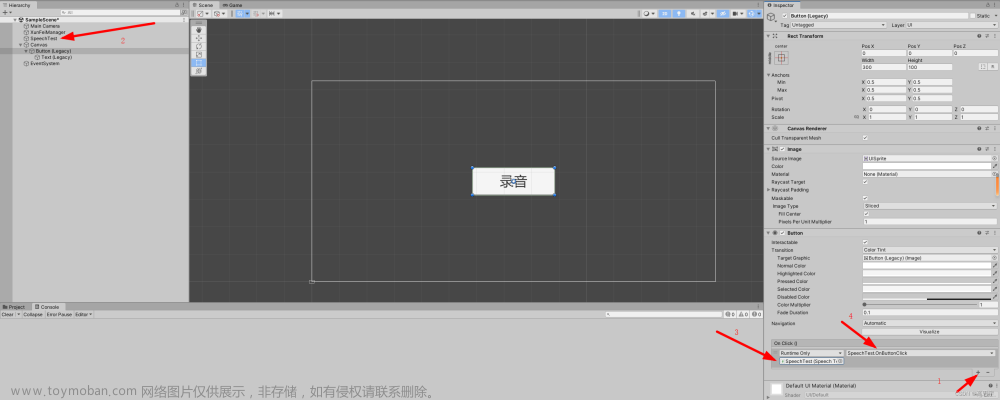

首先，给按钮添加一个点击事件(OnClick)，点击加号；然后将左侧的脚本(位置2)拖拽到右侧的RuntimeOnly(位置3)下面；选择脚本的SpeechTest.OnButtonClick方法(位置4)。

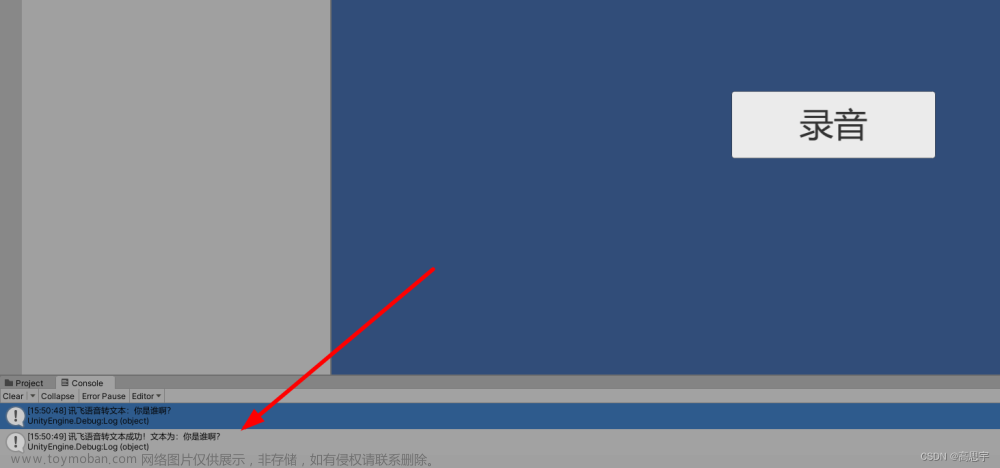

现在可以运行游戏，点击按钮开始录音，再次点击结束录音。
文章来源地址https://www.toymoban.com/news/detail-774025.html

到了这里，关于Unity+C#，讯飞 文本转语音、语音转文本的文章就介绍完了。如果您还想了解更多内容，请在右上角搜索TOY模板网以前的文章或继续浏览下面的相关文章，希望大家以后多多支持TOY模板网！
